PH14
Diameter: 70mm
Inner diameter: 10.8mm
Working voltage: 24V~48V
Weight: 906g (without brake) / 990g (with brake)
PH14
Product Structure
Product Features
| Motor Type | Inner Rotor Torque Motor | Encoder Type | Dual Magnetic Encoder | |||
| Working Noise | <60 dB @30cm | Encoder Accuracy | 19bit | |||
| Working Temperature | -20-80℃ | Power-off Brake | Optional | |||
| Reverse Backlash | 15 arcsec | Communication Protocol | EtherCAT/CAN | |||
Product Parameters
| Model | PH14-51 | PH14-101 | |
| Speed Ratio | 51 | 101 | |
| Rated Power | 80W | 80W | |
| Rated Speed | 60rpm | 30rpm | |
| Rated Torque | 6.6Nm | 9.6Nm | |
| Start-Stop Peak Torque | 23Nm | 34Nm | |
| Average Load Maximum Torque | 8.6Nm | 13.5Nm | |
| Instantaneous Allowable Maximum Torque | 43Nm | 66Nm | |

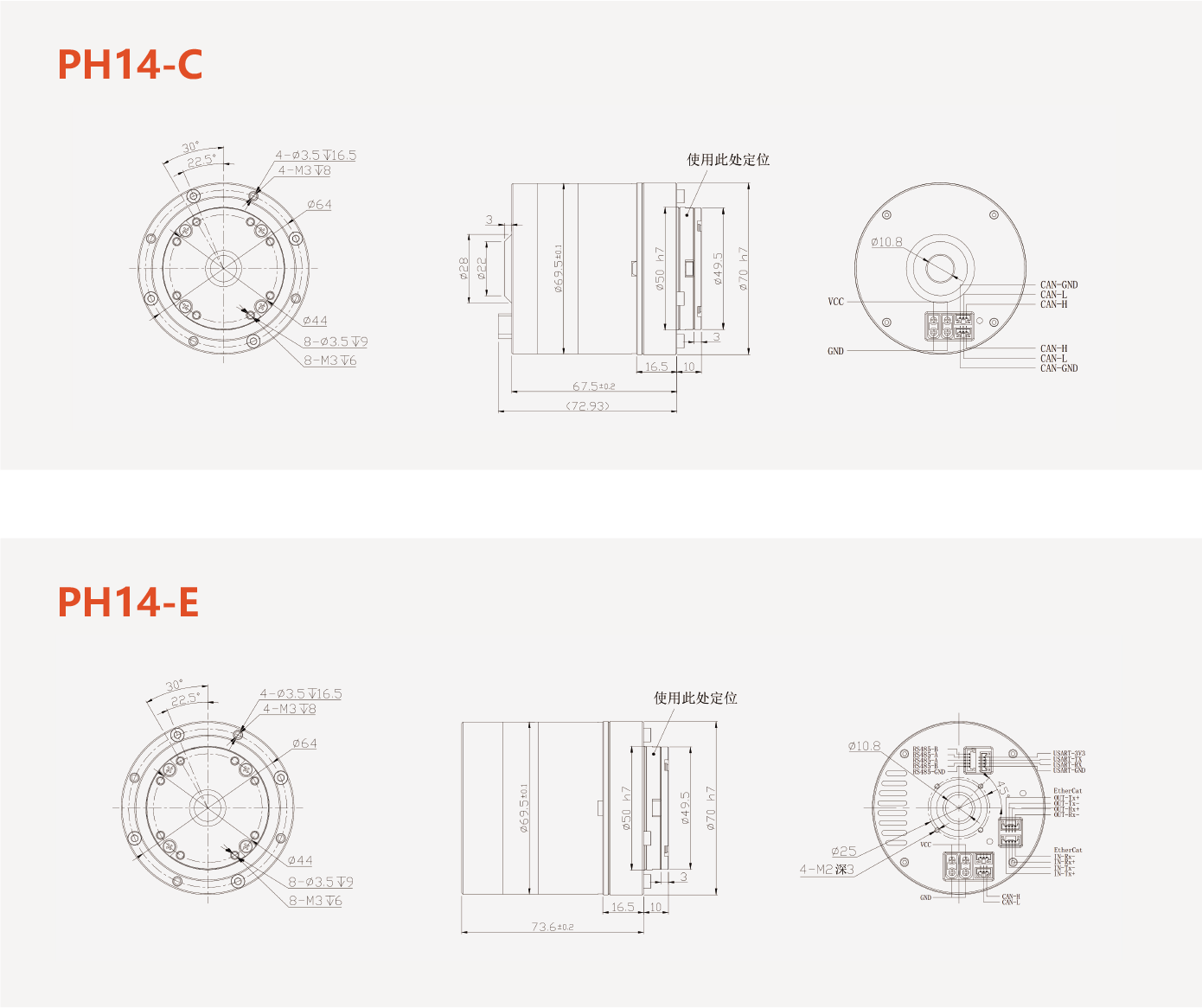

Drawing
