PH11
Diameter: 52mm
Inner diameter: 6mm
Working voltage: 24V~36V
Weight: 400g (without brake) / 455g (with brake)
PH11
Product Structure
Product Features
| Motor Type | Inner Rotor Torque Motor | Encoder Type | Dual Magnetic Encoder | |||
| Working Noise | <60 dB @30cm | Encoder Accuracy | 19bit | |||
| Working Temperature | -20-80℃ | Power-off Brake | Optional | |||
| Reverse Backlash | 15 arcsec | Communication Protocol | EtherCAT/CAN | |||
Product Parameters
| Model | PH11-51 | PH11-101 | |
| Speed Ratio | 51 | 101 | |
| Rated Power | 50W | 50W | |
| Rated Speed | 60rpm | 30rpm | |
| Rated Torque | 3.5Nm | 5Nm | |
| Start-Stop Peak Torque | 8.3Nm | 11Nm | |
| Average Load Maximum Torque | 5.5Nm | 8.8Nm | |
| Instantaneous Allowable Maximum Torque | 17Nm | 25Nm | |

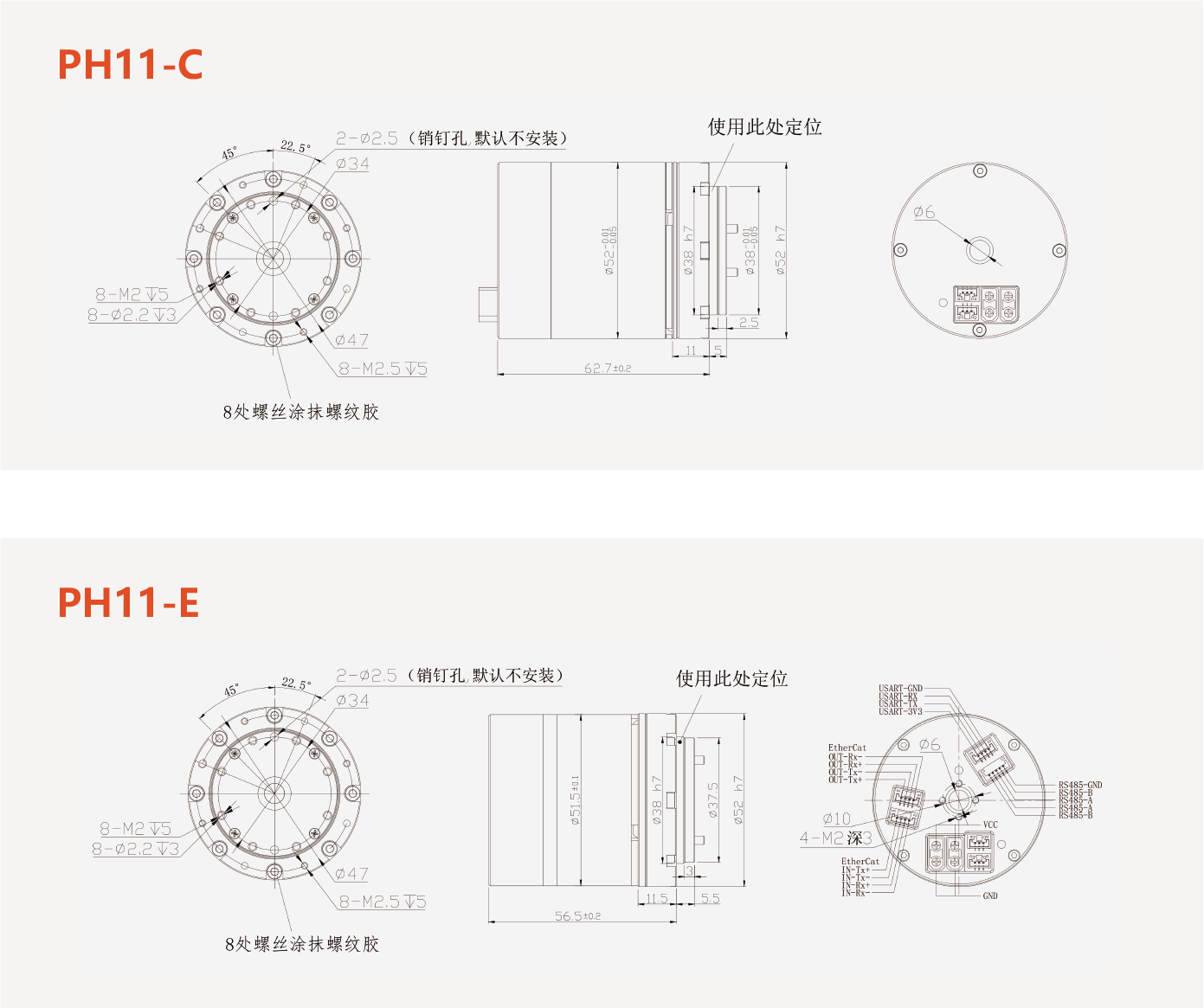

Drawing
