eyou Robot Technology
Humanoid linear joint module
Integrated drive control design, high-density frameless torque motor. High load, planetary roller screw, high-precision absolute encoder, high load capacity.
Product Parameters
|
Model |
PL05 |
PL40 |
PL80 |
|
Mounting hole size(mm) |
3 |
8 |
8 |
|
Total travel(mm) |
20 |
40 |
65 |
|
Maximum thrust(N) |
500 |
3900 |
8000 |
|
Maximum speed(mm/s) |
50 |
50 |
50 |
|
Rated voltage(V) |
48 |
48 |
48 |
|
No-load current(A) |
0.2 |
0.2 |
0.2 |
|
Maximum current(A) |
5 |
8 |
14 |
|
Temperature range(℃) |
-20~80 |
||
|
Rated power(W) |
89 |
314 |
628 |
|
Encoder accuracy |
19bit |
||
|
Encoder form |
Multi cycle absolute value |
||

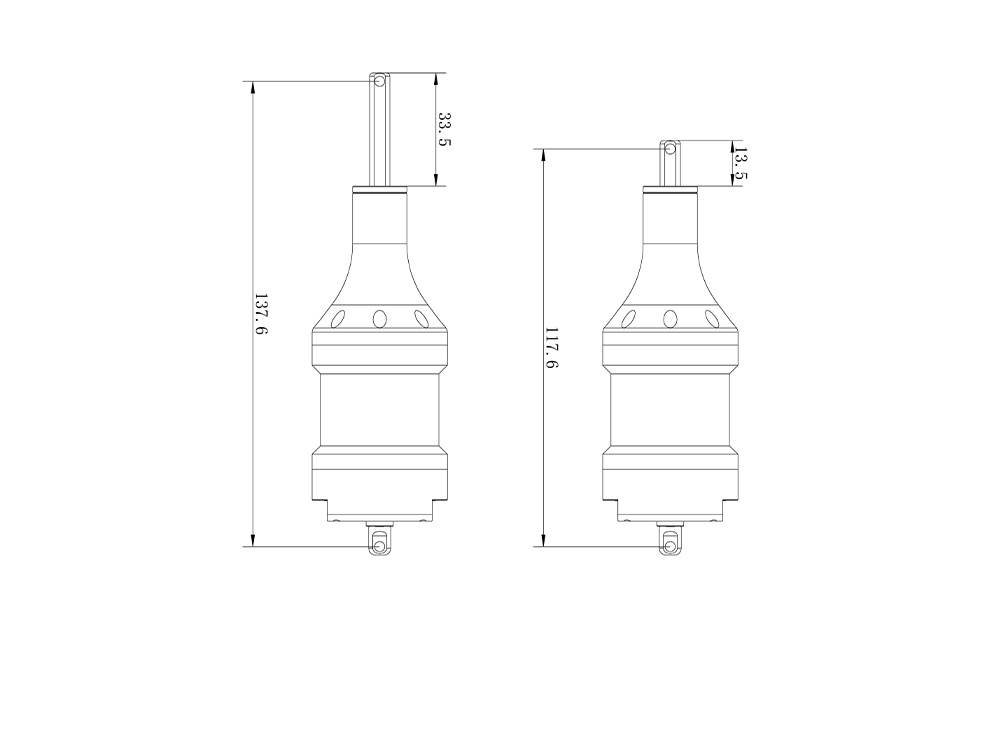

PL05

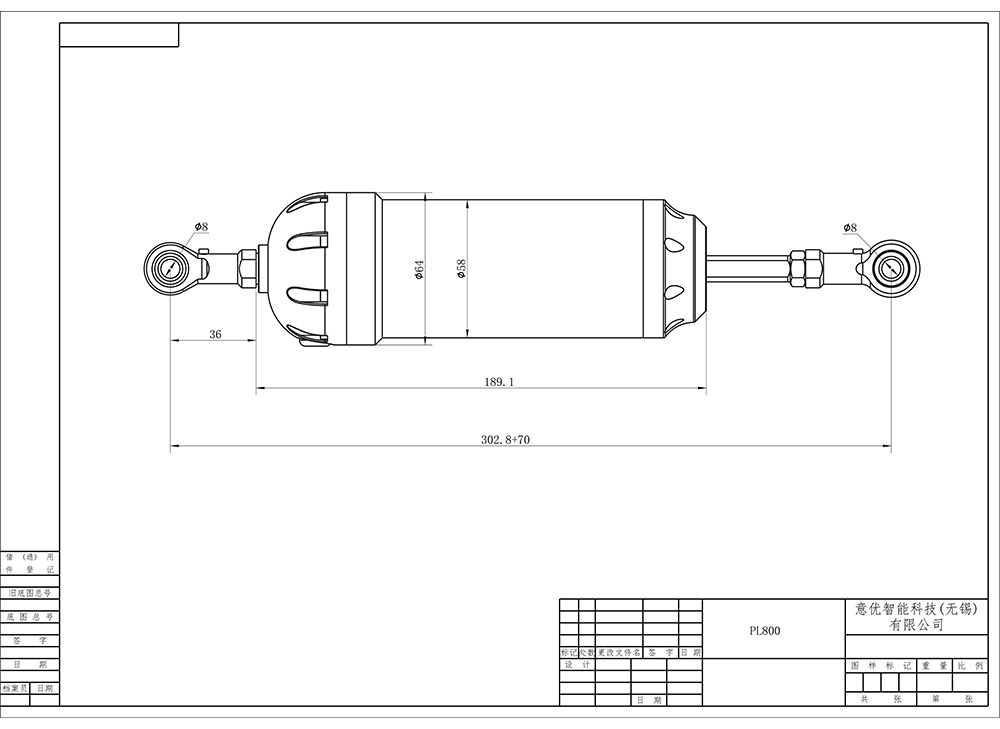

PL800
