PH25
Diameter: 110mm
Inner diameter: 13mm
Working voltage: 24V~48V
Weight: 2600g (without brake) / 2780g (with brake)
PH25
Product Structure
Product Features
| Motor Type | Inner Rotor Torque Motor | Encoder Type | Dual Magnetic Encoder | |||
| Working Noise | <60 dB @30cm | Encoder Accuracy | 19bit | |||
| Working Temperature | -20-80℃ | Power-off Brake | Optional | |||
| Reverse Backlash | 15 arcsec | Communication Protocol | EtherCAT/CAN | |||
Product Parameters
| Model | PH25-81 | PH25-101 | PH25-121 | |
| Speed Ratio | 81 | 101 | 121 | |
| Rated Power | 270W | 270W | 270W | |
| Rated Speed | 26rpm | 22rpm | 18rpm | |
| Rated Torque | 78Nm | 84Nm | 84Nm | |
| Start-Stop Peak Torque | 169Nm | 194Nm | 207Nm | |
| Average Load Maximum Torque | 107Nm | 133Nm | 133Nm | |
| Instantaneous Allowable Maximum Torque | 315Nm | 351Nm | 376Nm | |

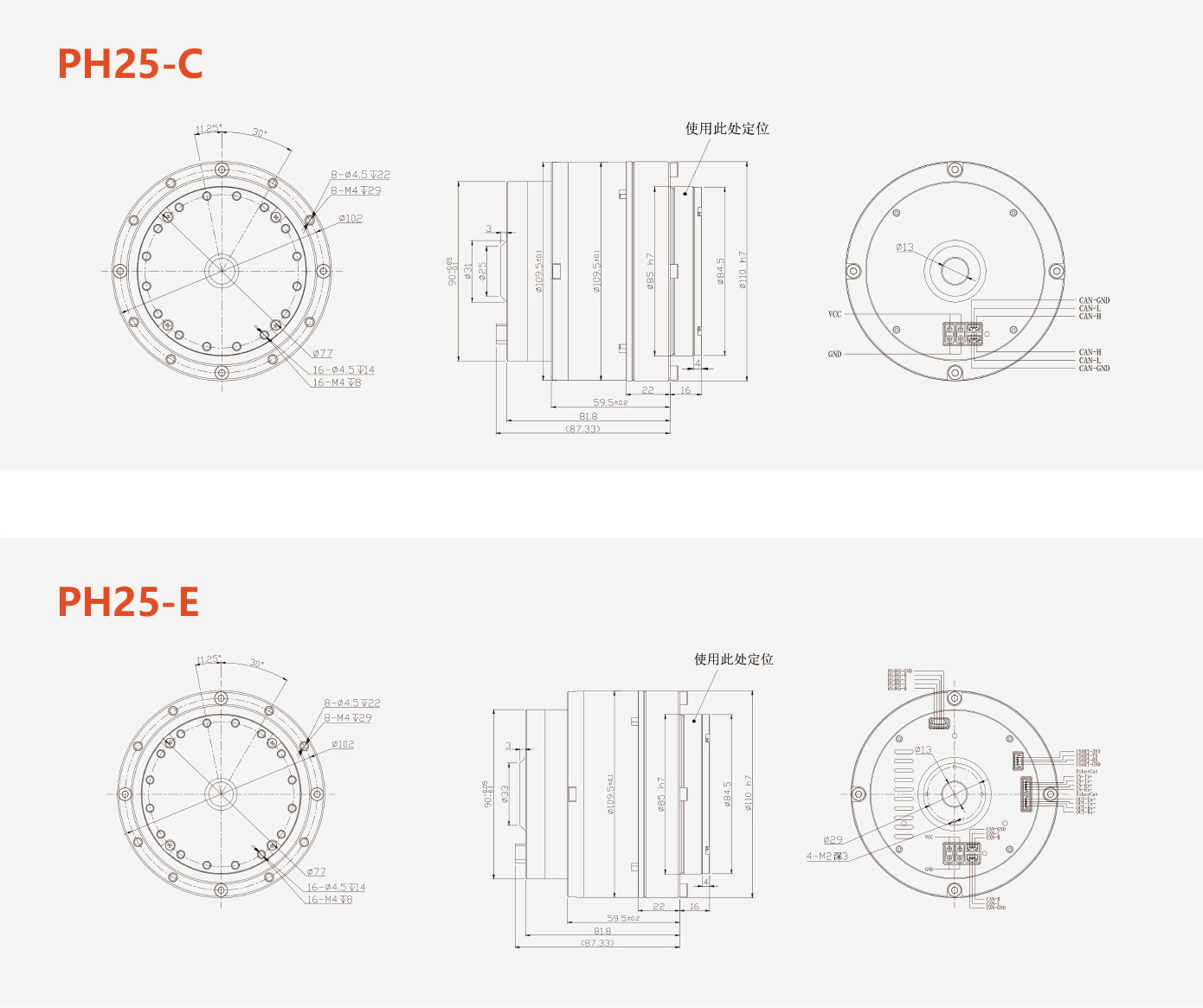

Drawing
