PP11L
Diameter: 52mm
Length: 82mm
Working voltage: 24V
Weight: 521g
PP11L
Product structure
Product features
| Safety protection | Over temperature protection + Over current protection | Encoder type | Dual magnetic encoder | |||
| Working noise | <60 dB @ 1m | Encoder accuracy | 18bit | |||
| Working temperature | -20-80℃ | Power-off brake | None | |||
| Reverse backlash | 10 arcmin | Communication protocol | CAN | |||
Product parameters
| Model | PP11L | |
| Reduction ratio | 36 | |
| Maximum power | 72W | |
| Rated speed | 50rpm | |
| Rated torque | 10Nm | |
| Peak torque | 18Nm | |

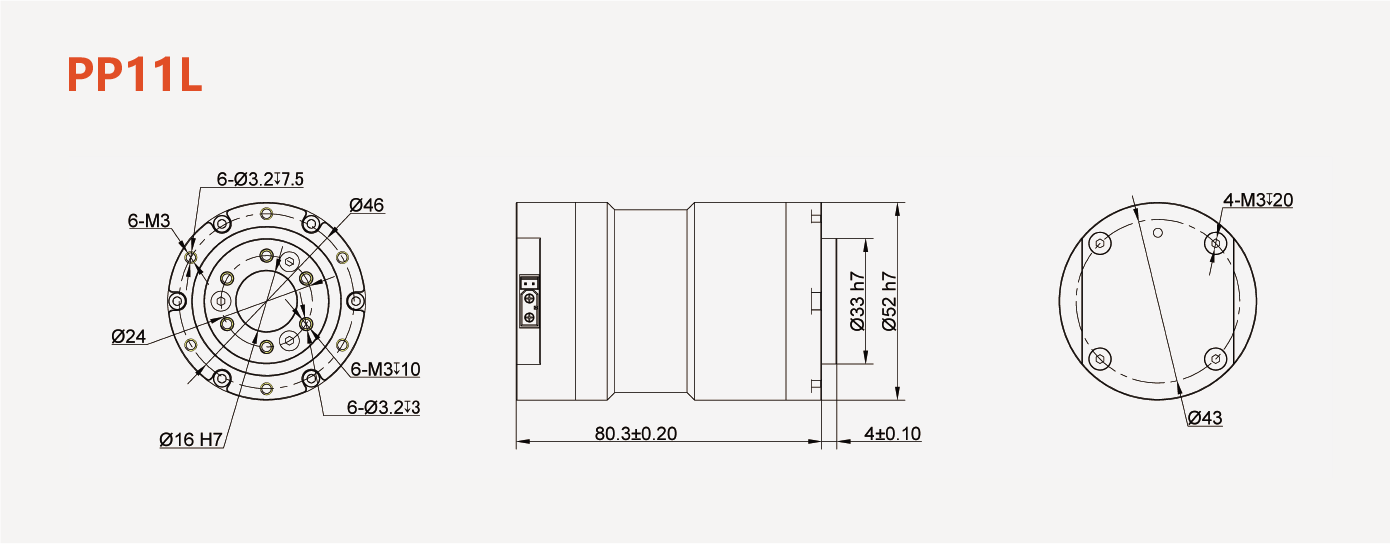

Drawings
