PP08D
Diameter: 40mm
Length: 48mm
Working voltage: 24V
Weight: 199g
PP08D
Product structure
Product features
| Safety protection | Over temperature protection + Over current protection | Encoder type | Dual magnetic encoder | |||
| Working noise | <60 dB @ 1m | Encoder accuracy | 18bit | |||
| Working temperature | -20-80℃ | Power-off brake | None | |||
| Reverse backlash | 10 arcmin | Communication protocol | CAN | |||
Product parameters
| Model | PP08D | |
| Reduction ratio | 36 | |
| Maximum power | 36W | |
| Rated speed | 50rpm | |
| Rated torque | 1.0Nm | |
| Peak torque | 2.2Nm | |

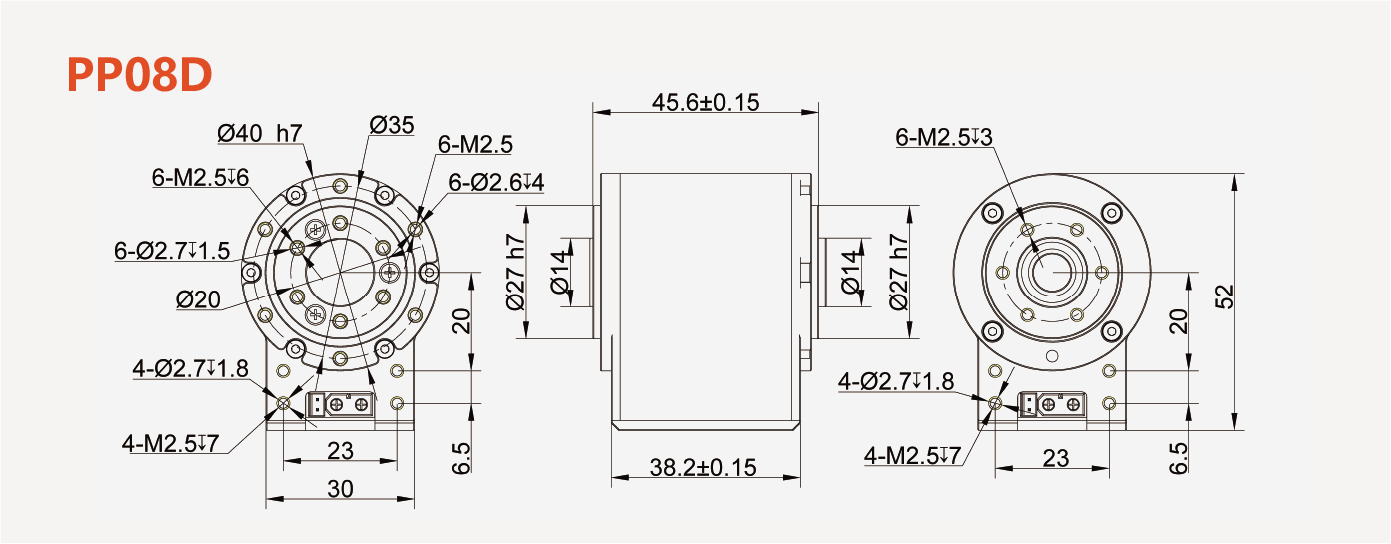

Drawing
